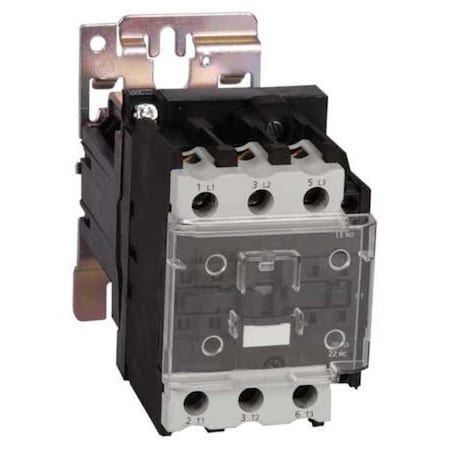

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing

Description

<p>The DAYTON IEC Magnetic Contactor is an IEC-standard, electrically operated switching device rated for operation within the specified voltage and current ranges. It uses an electromagnetic coil to open or close contacts, suitable for controlling motors, lighting, and other compatible loads within specified parameters. This 3-pole, non-reversing unit features a 24 V DC coil, 2 auxiliary contacts (1NO/1NC), no embedded surge suppressor, and no enclosure, aligning with IEC-style modular control panel applications.</p> <p>- Action: Non-Reversing</li> <li>- Reversing: No</li> <li>- Poles: 3</li> <li>- Coil Voltage: 24 V DC</li> <li>- Coil Volts: 24 V DC</li> <li>- Auxiliary Contacts: Yes (2 total)</li> <li>- Auxiliary Contact Configuration: 1NO/1NC</li> <li>- Auxiliary Contact Form: 1NC/1NO</li> <li>- Includes Auxiliary Contacts: Yes</li> <li>- Number of Auxillary Contacts: 2</li> <li>- Depth: 6.73 in</li> <li>- Height: 2.95 in</li> <li>- Width: 2.95 in</li> <li>- Overall Depth / Overall Height / Overall Width: 6.73 in / 2.95 in / 2.95 in</li> <li>- Enclosure: No Enclosure</li> <li>- NEMA Enclosure Rating: No Enclosure</li> <li>- Embedded Surge Suppressor: No</li> <li>- Standards: CSA, UL Listed</li> <li>- Item: IEC Magnetic Contactor</li> <li>- Number of Poles: 3</li> <li>- Full Load Amps - Inductive: 50 A</li> <li>- Full Load Amps - Resistive: 70 A</li> <li>- Full Load Current - Inductive: 50 A</li> <li>- Full Load Current - Resistive: 70 A</li> <li>- HP @ 1 Phase - 120V: 3 hp</li> <li>- HP @ 1 Phase - 230V: 7-1/2 hp</li> <li>- HP @ 1 Phase - 240V: 7-1/2 hp</li> <li>- HP @ 3 Phase - 208V: 15 hp</li> <li>- HP @ 3 Phase - 240V: 15 hp</li> <li>- HP @ 3 Phase - 480V: 40 hp</li> <li>- HP @ 3 Phase - 575V: 40 hp</li> <li>- HP @ 3 Phase - 600V: 40 hp</li></ul></p>
