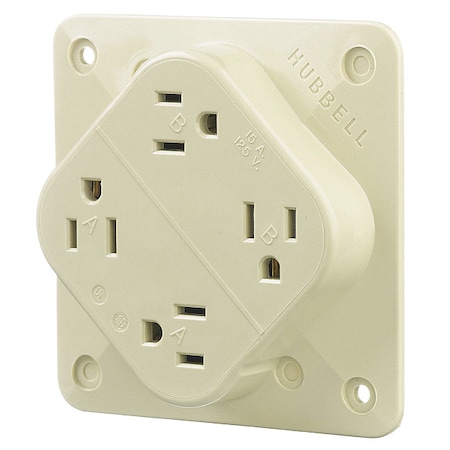

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

Description

<p>The HUBBELL Receptacle is a 15A, 125V AC quad outlet designed for surface mounting in commercial and industrial settings. This receptacle features four NEMA 5-15R outlets within a single device, allowing multiple connections from one location. It is constructed with a polycarbonate housing and brass contacts suitable for indoor use.</p><br /><br /><p>Key Features of the HUBBELL Quad Outlet Receptacle:<br><br /></p><ul><br /><li>Outlet Configuration: Four NEMA 5-15R straight blade outlets in a quad arrangement</li><br /><li>Mounting Type: Surface mount design suitable for indoor installation</li><br /><li>Electrical Rating: Rated for 15 amps at 125 volts AC; supports up to 1/2 horsepower loads</li><br /><li>Wiring Method: Back-wired screw terminals accommodate #14–12 AWG copper conductors (stranded or solid)</li><br /><li>Material Construction: Polycarbonate base and housing with .032" brass power contacts</li><br /><li>Grounding: Grounded, two-pole three-wire configuration with green #8-32 brass ground screw</li><br /><li>Circuit Features: Anchor hole and loop feature secures solid wire; triple wipe contacts; break-off tabs allow split wiring of outlets</li><br /><li>Certifications &amp; Standards: Listed to UL Standard 498, CSA Certified C22.2 No.42, meets NEMA WD-6 requirements</li></ul><p>&nbsp;</p>
