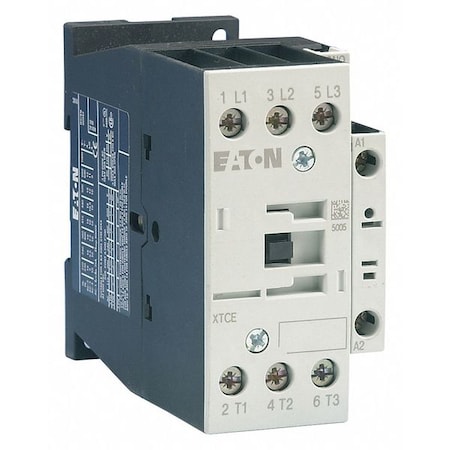

IEC Magnetic Contactor, 1NO, 208V AC, 3 P, Non-Reversing, Screw

Description

<p>The Eaton XT IEC contactor is an IEC magnetic contactor (IEC standard) designed to electrically switch power circuits. It is a 3-pole, non-reversing device with 1 normally open auxiliary contact, energized by a 208V AC coil and rated for operation within the specified frequency range of 60 Hz. The unit is designed to be compatible with DIN rail or panel mounting; includes an embedded surge suppressor (IP20). It belongs to the XT series and uses Frame C.</p> <p>Key features</li> <li>- Action: Non-Reversing (controls current flow in one direction)</li> <li>- Poles: 3</li> <li>- Coil Voltage: 208 V AC</li> <li>- Amperage Rating: 25 A (Full Load: Inductive 25 A; Resistive 45 A)</li> <li>- Auxiliary Contacts: 1 NO</li> <li>- Mounting: DIN Rail, Panel</li> <li>- Electrical Connection: Screw terminals</li> <li>- Enclosure: No Enclosure; IP20</li> <li>- Frame / Series / Code: Frame C; XT series</li> <li>- Rated for use at voltages up to 690V AC within specified conditions</li> <li>- Frequency: 60 Hz</li> <li>- Certifications: IEC 60947; CSA Certified; UL Listed; EN 60947</li> <li>- Reversing: No</li> <li>- Product Name: Eaton XT IEC contactor</li> <li>- Dimensions (approx.): Width 1.85 in; Height 3.90 in; Depth 3.43 in</li> <li>- Mechanical durability: Tested to withstand a specified number of mechanical cycles under standard testing conditions</li> <li>- Embedded Surge Suppressor: Yes</li></ul></p>
