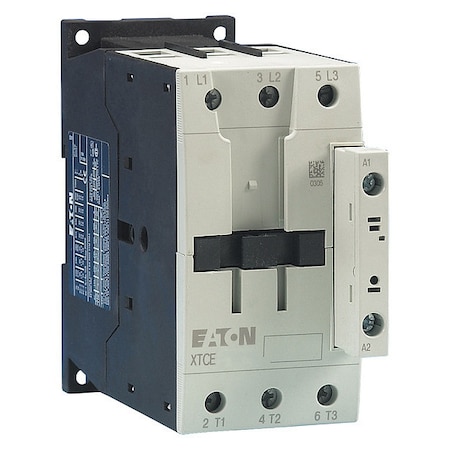

IEC Magnetic Contactor, No Auxiliary Contacts, 480V AC, 3 P, Non-Reversing, Screw

Description

<p>The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic contactor with a 480 V AC coil. It uses screw terminals and has no auxiliary contacts, rated for use within the specified application parameters and compliant with IEC standards.</p> <p>- Product Name: Eaton XT IEC contactor</li> <li>- Poles: 3</li> <li>- Action: Non-Reversing</li> <li>- Coil Voltage: 480 V AC</li> <li>- Amperage rating: 65 A (inductive) / 98 A (resistive)</li> <li>- Auxiliary Contacts: No auxiliary contacts (0 NO, 0 NC)</li> <li>- Frame Size: D; Series: XT</li> <li>- Mounting Style: DIN Rail, Panel</li> <li>- Terminal Connection: Screw</li> <li>- Enclosure: No Enclosure</li> <li>- IP Rating: IP20</li> <li>- Maximum Voltage Rating: 690 V AC</li> <li>- Certifications: UL Listed; CSA Certified; IEC 60947; EN 60947</li> <li>- Standards: CE Marked; RoHS; UL Listed; CSA</li> <li>- Frequency: 50/60 Hz</li> <li>- Mechanical Durability: 10,000,000 cycles</li> <li>- Electrical Operating Durability: 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)</li> <li>- Operating Temperature: -13°F to 122°F</li></ul></p>
