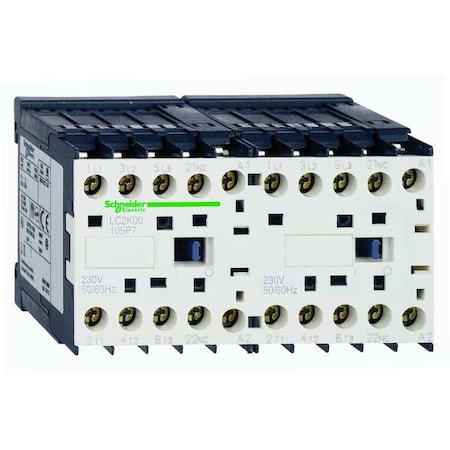

IEC Miniature Magnetic Contactor, 1NC, 120V AC, 3 P, Reversing, Screw Clamp

Description

<p>- Application: This product is intended for use in motor control applications and resistive load switching within specified electrical ratings.</li> <li>- Poles: 3P; Main contacts: 3 NO; Auxiliary: 1 NC (Instantaneous)</li> <li>- Action: Reversing</li> <li>- Coil voltage: 120 V AC</li> <li>- Terminals: Screw Clamp</li> <li>- Series: TeSys K</li> <li>- Maximum voltage rating: 690 V AC</li> <li>- Power circuit making capacity: Rated for operation up to the specified maximum voltage and current ratings.</li> <li>- Control circuit frequency: 50/60 Hz</li> <li>- Ambient operating temperature: -13 to 122°F (-25 to 50°C)</li> <li>- Ambient storage temperature: -58 to 176°F (-50 to 80°C)</li> <li>- Enclosure/IP: No Enclosure; IP20</li> <li>- Weight: 0.39 kg</li> <li>- Mounting: DIN Rail, Plate</li> <li>- Impulse withstand voltage: 8 kV</li> <li>- Certifications: CB Scheme; CCC; UL; CSA; EAC; CE; UKCA</li> <li>- Dimensions (Width x Depth x Height): Approximate measurements provided</li></ul></p>
