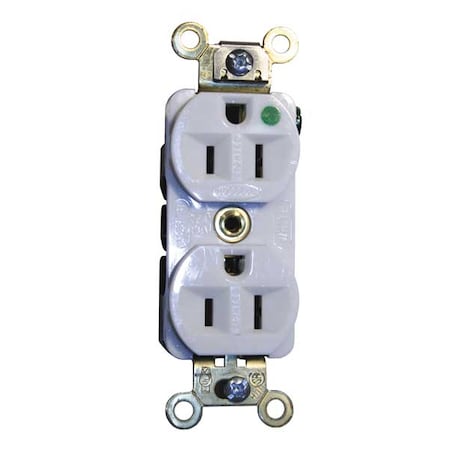

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL 15A Duplex Receptacle 125VAC 5-15R WH is a traditional duplex electrical outlet rated as Hospital Grade and suitable for use in demanding environments. It features a polycarbonate face with finder groove and is rated for indoor use in dry locations. The receptacle supports both back and side wired screw terminal connections, accommodating #14 to #10 AWG copper wire, and includes product identification markings indicating ratings as part of the device.</p><br /><br /><p>Key Features of the HUBBELL 15A Duplex Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 15 A at 125 V AC</li><br /><li>NEMA Configuration: 5-15R, standard duplex outlet</li><br /><li>Grade: Hospital Grade Fed. Spec., intended for use in demanding environments</li><br /><li>Contact Material: Nickel-plated brass contacts</li><br /><li>Grounding: Four-point grounding system offers redundant ground continuity</li><br /><li>Impact Resistance: Deep polycarbonate face with finder groove</li><br /><li>Wiring Method: Back and side wired screw terminals support stranded or solid copper wire (#14–#10 AWG)</li><br /><li>Operating Temperature Range: -40°C (w/o impact) to +75°C continuous operation</li><br /><li>Illumination Feature: Equipped with two LEDs that illuminate the device</li><br /><li>Certifications/Standards: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6 compliant, UL Listed to UL498 File E2186</li></ul><p>&nbsp;</p>
