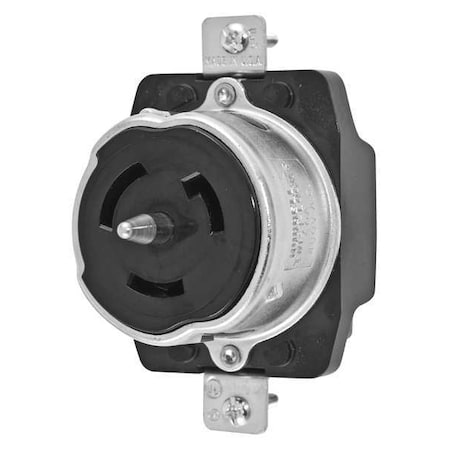

Locking Receptacle, Non-NEMA, 50 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

Description

<p>The HUBBELL 50A Twist-Lock Receptacle is an industrial locking receptacle intended for electrical connections in various environments. It includes a twist-lock mechanism to prevent accidental disconnection and is rated for 50 amps at 480V AC, single phase. The device accommodates #10 AWG to #6 AWG solid or stranded copper wire and mounts flush for streamlined installation.</p><br /><br /><p>Key Features of the HUBBELL 50A Twist-Lock Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 50 A, 480V AC single phase applications</li><br /><li>Poles/Wires: 2-pole, 3-wire configuration with grounding</li><br /><li>Construction: Black thermoset base with impact-modified PBT housing; shrouded design enhances durability</li><br /><li>Contact Material: brass contacts</li><br /><li>NEMA/Enclosure Rating: Non-NEMA configuration; NEMA enclosure ratings of 4, 4X, and 12 suitable for indoor dry locations unless protected by additional means</li><br /><li>Mounting Type: Flush mount with screw mounting hardware included</li><br /><li>Cable Accommodation: Accepts #10–#6 AWG solid or stranded copper wire via screw terminals</li><br /><li>Temperature Range: Operates from -40°C to +75°C (maximum continuous), maximum operating temperature of up to 167°F (75°C)</li><br /><li>Flammability &amp; Standards: UL94 V-0 flammability rating; certified to CSA C22.2 No.42 and listed to UL498 standards</li></ul><p>&nbsp;</p>
