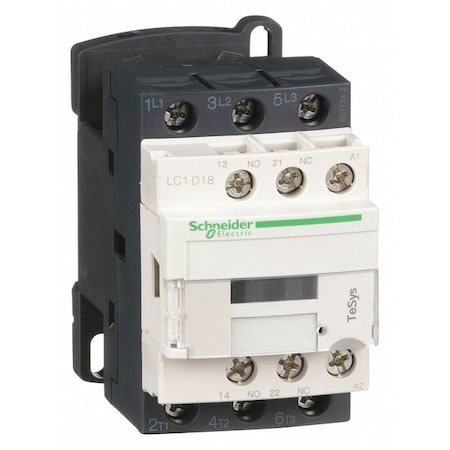

IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Non-Reversing, Screw Clamp

Description

<p>The IEC Magnetic Contactor is a 3-pole, non-reversing switching device rated for operation within specified electrical parameters in motor control and resistive-load applications. It includes auxiliary contacts as specified (1NO/1NC), a 480 V AC coil, and a maximum 690 V AC voltage rating. The unit conforms to IEC standards; designed for DIN rail or plate mounting within specified parameters. It may be used without an enclosure; includes a protective cover for added protection. It uses screw clamp terminals and provides 3 normally open main contacts for primary switching; it is rated for operation at 50/60 Hz within the specified voltage ranges; compatible with three-phase systems.</p> <p>- Action: Non-Reversing</li> <li>- Poles/Main Contacts: 3 poles; 3 normally open main contacts</li> <li>- Auxiliary Contacts: includes auxiliary contacts as specified (1NO/1NC)</li> <li>- Auxiliary Contact Form: 1NC/1NO</li> <li>- Coil Voltage: 480 V AC</li> <li>- Max Voltage Rating: 690 V AC</li> <li>- Contactor Style: IEC; Frame/Series: TeSys Deca</li> <li>- Frequency: 50/60 Hz</li> <li>- Mounting: DIN Rail, Plate</li> <li>- Mounts On: Plate, Rail</li> <li>- Electrical Connection: Screw Clamp Terminals</li> <li>- Enclosure: May be used without enclosure; includes a protective cover for added protection</li> <li>- Includes Protective Cover: Yes</li> <li>- Includes Auxiliary Contacts: Yes</li> <li>- Net Weight: 0.33 kg</li> <li>- Dimensions: Width 1.77 in; Depth 3.38 in; Height 3.03 in</li> <li>- Flammability Rating: complies with UL 94 V1 flammability rating</li> <li>- Connection Type: Screw Clamp</li> <li>- Coil Hold/Operating: 7–7.5 VA hold; 12–22 ms closing, 4–19 ms opening</li> <li>- Standards: UL Listed, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1</li> <li>- Phase: Three</li> <li>- Working Height: Up to 9842.52 ft</li></ul></p>
