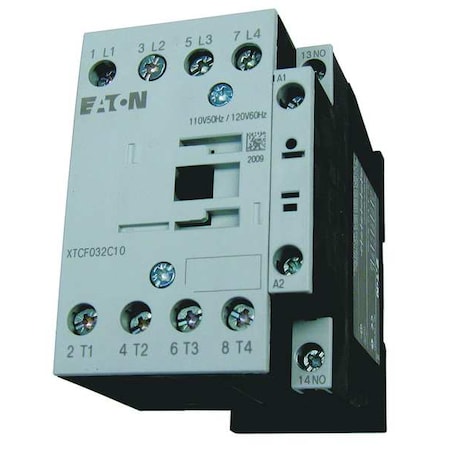

IEC Magnetic Contactor, 1NO, 120V AC, 4 P, Non-Reversing, Screw

Description

<p>The Eaton XT IEC contactor is an IEC magnetic contactor (non-reversing, 4-pole) with a 32 A continuous rating and a 120 V AC coil. It uses screw terminals, includes one normally open auxiliary contact, and is rated for installation on DIN Rail or panel surfaces. Enclosure: Enclosure rated IP20; Rated for operation up to 690 V AC within specified parameters, belonging to the XT series with frame size C.</p> <p>- Action: Non-Reversing</li> <li>- Poles: 4</li> <li>- Coil Voltage: 120V AC</li> <li>- Amperage Rating: 32A</li> <li>- Auxiliary Contacts: 1NO (Includes Auxiliary Contacts: Yes; Aux. Contact Form: 1NO)</li> <li>- Embedded Surge Suppressor: Includes an embedded surge suppressor (functionality may vary)</li> <li>- Mounting Style: DIN Rail, Panel</li> <li>- Terminal Connection Type: Screw</li> <li>- Frame/Series/Code: Frame C; Series XT</li> <li>- Enclosure: Enclosure rated IP20</li> <li>- Certifications: UL Listed; CSA Certified; IEC 60947; EN 60947; CE Marked</li> <li>- Frequency: 50/60 Hz</li> <li>- Maximum Voltage Rating: Rated for operation up to 690 V AC within specified parameters</li> <li>- Mechanical Durability: 10000000</li> <li>- Operating Temperature: Operates within the specified temperature range of -13°F to 122°F</li> <li>- Dimensions (W x H x D): Width 2.28 in; Height 3.35 in; Depth 5.43 in</li> <li>- Reversing: No</li> <li>- Type: Full voltage non-reversing contactor</li></ul></p>
