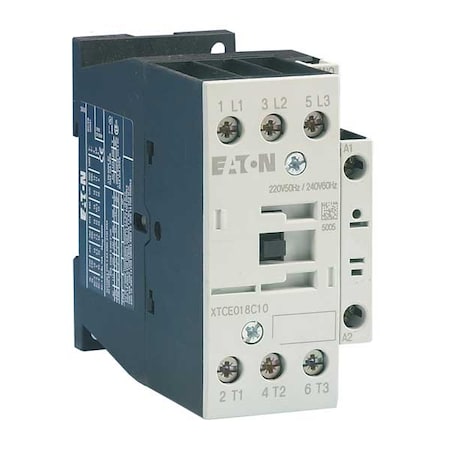

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw

Description

<p>The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic contactor with a 24V DC coil and one normally open auxiliary contact (1NO). It follows IEC standards (Frame Size C) and is rated for operation within specified power circuit parameters. The unit uses screw terminals and supports DIN rail or panel mounting. It has a rated current capacity of 32A (inductive) and 45A (resistive) under specified conditions, with operation at 50/60 Hz. It is rated for operation up to 690V AC within the specified voltage range. Certifications conform to applicable standards including UL Listed, CSA Certified, CE Marked, EN 60947, IEC 60947, and RoHS; includes an embedded surge suppressor.</p> <p>Key features</li> <li>- Poles: 3</li> <li>- Coil: 24 V DC; Coil voltage: 24 V DC</li> <li>- Auxiliary contacts: 1 NO</li> <li>- Mounting: DIN Rail, Panel</li> <li>- Terminals: Screw</li> <li>- Frame/Series: Frame C; Series XT</li> <li>- Enclosure: No Enclosure; IP20</li> <li>- Certifications/Compliances: UL Listed; CSA Certified; CE Marked; EN 60947; IEC 60947; RoHS</li> <li>- Full-load currents: 32 A (inductive); 45 A (resistive)</li> <li>- Electrical durability: 300 (AC-4 400V Ie); 800 (AC-1 400V Ie); 800 (AC-3 400V Ie)</li> <li>- Mechanical durability: 10,000,000 cycles</li> <li>- Reversing: No</li> <li>- Maximum voltage: 690V AC</li> <li>- Response time: as specified (AC Opening <14 ms; AC Closing <22 ms; DC Opening <30 ms; DC Opening <47 ms)</li></ul></p>
