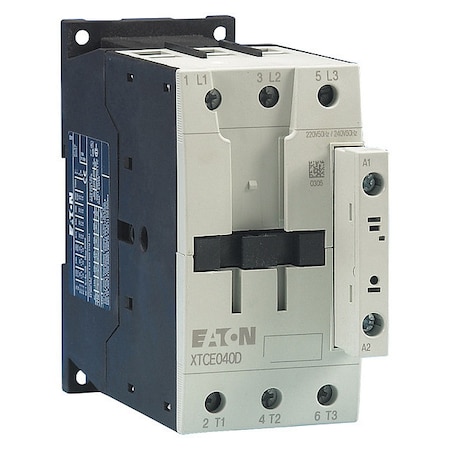

IEC Magnetic Contactor, No Auxiliary Contacts, 208V AC, 3 P, Non-Reversing, Screw

Description

<p>The Eaton XT IEC contactor is a 3-pole, full-voltage non-reversing IEC magnetic switch designed to control power circuits. It uses a 208 V AC coil and is rated for a maximum of 40 A inductive load and 60 A resistive load within specified conditions. The unit has no auxiliary contacts, uses screw terminals, and is part of the XT series (Frame D). It supports DIN Rail or panel mounting and ships without an enclosure, with IP20 protection. Certifications include CE, CSA, EN 60947, IEC 60947, RoHS, and UL Listed. Certified to standards including CE, CSA, EN 60947, IEC 60947, RoHS; listed by UL (see certification details).</p> <p>- Type: Full voltage non-reversing contactor</li> <li>- Action / Reversing: Non-Reversing; Reversing: No</li> <li>- Poles: 3</li> <li>- Coil Voltage: 208 V AC</li> <li>- Electrical connection: Screw terminals</li> <li>- Auxiliary contacts: No</li> <li>- Contact configuration: 0 NO, 0 NC</li> <li>- Frame Size / Series: Frame D / XT</li> <li>- Mounting Style: DIN Rail, Panel</li> <li>- Enclosure: No Enclosure</li> <li>- IP Rating: IP20</li> <li>- Maximum voltage rating: rated for operation at voltages up to 690 V AC within specified parameters</li> <li>- Frequency: 60 Hz</li> <li>- Certifications: Certified to standards including CE, CSA, EN 60947, IEC 60947, RoHS; listed by UL (see certification details)</li> <li>- Mechanical operating durability: has an expected mechanical lifespan based on standard testing procedures</li> <li>- Electrical operating durability: designed to operate over the specified number of cycles under test conditions</li> <li>- Embedded surge suppressor: Yes</li> <li>- Operating temperature range: -13°F to 122°F</li> <li>- Load ratings: rated for a maximum of 40 A inductive load and 60 A resistive load within specified conditions</li></ul></p>
