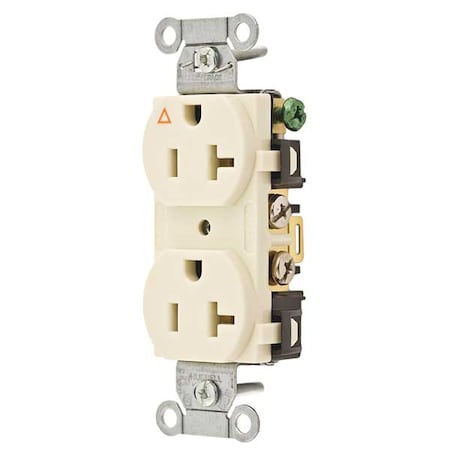

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

Description

<p>The HUBBELL 20A Duplex Receptacle 125VAC 5-20R Almond is a specification grade duplex outlet rated for indoor use. It includes an isolated ground configuration that separates the ground contacts from the mounting strap and conventional grounding system; intended for installations where a dedicated grounding path is specified. The receptacle has a smooth nylon face with triangle marking denoting its isolated ground feature; supports side-wired connections.</p><br /><br /><p>Key Features of the HUBBELL 20A Duplex Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 20 A at 125 VAC</li><br /><li>NEMA Configuration: 5-20R, standard duplex outlet type</li><br /><li>Grounding: Isolated ground design with green grounding screw directly connected to brass ground contacts</li><br /><li>Material Construction: Nylon base and face; brass power and ground contacts; galvanized steel mounting strap</li><br /><li>Wiring Method: Side wired with screw terminals accommodating #12–#10 AWG copper wire (stranded or solid)</li><br /><li>Operating Temperature Range: -40°C to +75°C (without impact)</li><br /><li>Certification &amp; Standards: UL Listed (UL498), CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6 compliant</li><br /><li>Dielectric Strength &amp; Flammability Rating: Withstands minimum 2,000V dielectric voltage; UL94 V-2 flammability rating</li></ul><p>&nbsp;</p>
