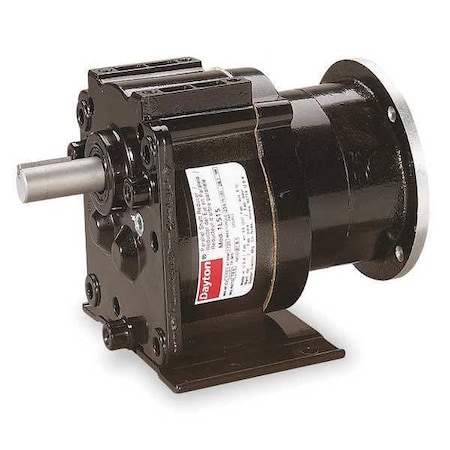

Speed Reducer, C-Face, 42CZ/48, 35.8:1

Description

Speed Reducer, Input Connection Type C-Face, Maximum Output Speed 48 RPM, Motor Frame Designation 42CZ/48, Base to Center 3.33 in, Gear Ratio 35.84:1, Rotation -, Maximum Input Horsepower 0.25 hp, Maximum Output Torque 295 in-lb, Overhung Load Capacity 175 lb, Mounting Orientation Any Angle, Overall Height 4.75 in, Application Speed Reducer, Bearing Type Ball, Maximum Input Speed 1,725 RPM
