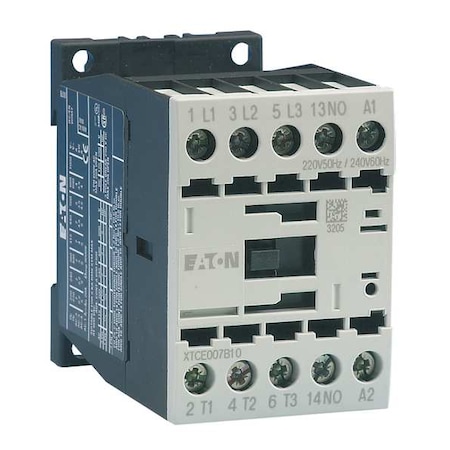

IEC Magnetic Contactor, 1NC, 24V AC, 3 P, Non-Reversing, Screw

Description

<p>The Eaton XT IEC Magnetic Contactor is an IEC magnetic contactor (electrically operated switching device) rated for use within IEC standards. It is a 3-pole, non-reversing device with a 24 V AC coil and screw terminals, and includes one normally closed auxiliary contact (1NC).</p> <p>Key features: <ul><li>- Action: Non-Reversing</li> <li>- Poles: 3</li> <li>- Coil Voltage: 24V AC</li> <li>- Amperage Rating (Full Load): Inductive 7 A; Resistive 22 A</li> <li>- Auxiliary Contacts: 1 NC (Includes auxiliary contacts)</li> <li>- Contact Configuration: 1 NC</li> <li>- Terminal Connection: Screw</li> <li>- Mounting Style: DIN Rail, Panel</li> <li>- Frame / Series / Code: Frame B; XT</li> <li>- Enclosure: No Enclosure</li> <li>- IP Rating: IP20</li> <li>- Width x Height x Depth: 3.5 in x 1.5 in x 4 in</li> <li>- Maximum Voltage Rating: 690V AC</li> <li>- Standards / Certifications: CE Marked; UL Listed; CSA Certified; EN 60947; IEC 60947; RoHS</li> <li>- Reversing: No</li> <li>- Type: Full voltage non-reversing contactor</li> <li>- Includes Auxiliary Contacts: Yes</li> <li>- Number of Aux Contacts: 1</li> <li>- Frequency: 50/60 Hz</li> <li>- Operating Temperature Range: -13°F to 122°F</li> <li>- Product Name: Eaton XT IEC contactor</li> <li>- Response Time: Less Than 12 msec (DC Opening); Less Than 18 msec (AC Opening); Less Than 21 msec (AC Closing); Less Than 31 msec (DC Opening)</li></ul></p>
