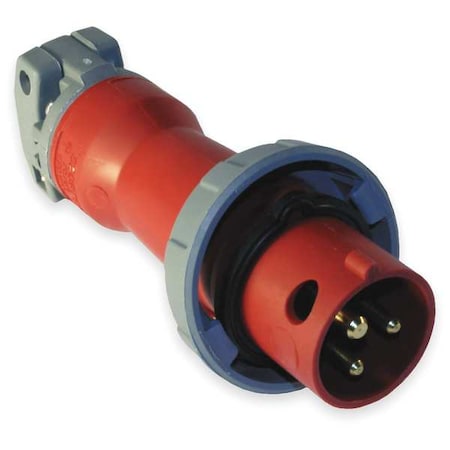

Watertight Pin & Sleeve Plug, 30 A, 480V AC, Single Phase, 2 Pole, IEC Grounding, Red

Description

<p>The HUBBELL IEC Pin and Sleeve Plug is a rated for 30 amps at 480V AC single phase electrical connector designed for high ampacity connections in demanding environments. This 30A, 480V AC plug features a rugged, non-metallic Zytel 801 nylon housing and is compatible with a range of portable cord types. It utilizes pressure terminal screws and accommodates wire sizes from #12 AWG to #8 AWG. The device meets CSA Standard C22.2 No. 182.1 and UL Classified to IEC60309-1 standards.</p><br /><br /><p>Key Features of the HUBBELL IEC Pin and Sleeve Plug:<br><br /></p><ul><br /><li>Current/Voltage Rating: Rated for 30 amps at 480V AC single phase</li><br /><li>Watertight Construction: Gasketed sealing ring; IP67 ingress protection</li><br /><li>Material: Body made from Zytel 801 nylon composite</li><br /><li>Cord Mounting: For cord-mounted installation; supports cable diameters from 0.5 in to 1.25 in</li><br /><li>Wire Connection Type: Screw terminals compatible with #12–#8 AWG wire sizes</li><br /><li>Pole/Wire Configuration: Two poles, three wires (grounded)</li><br /><li>Operating Temperature Range: -40°C to +75°C continuous operation without impact</li><br /><li>Horsepower Rating: Rated up to 7-1/2 hp</li><br /><li>Standards Compliance: Meets CSA Standard C22.2 No.182.1, UL Listed File E146032, UL Classified to IEC60309-1 requirements</li></ul><p>&nbsp;</p>
