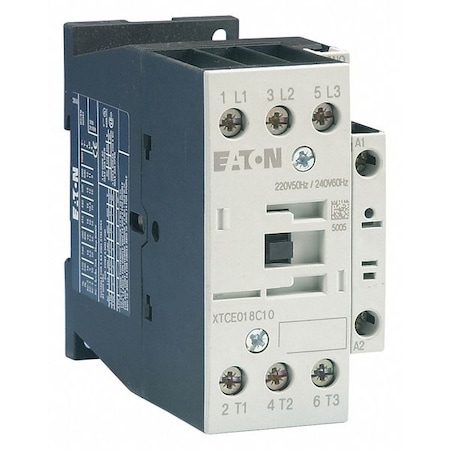

IEC Magnetic Contactor, 1NC, 480V AC, 3 P, Non-Reversing, Screw

Description

<p>The Eaton XT IEC contactor is an IEC magnetic contactor with 3 poles that functions as a non-reversing contactor within specified operational parameters. It is rated for operation with 480 V AC coils as specified to switch power circuits. It is rated for up to 18 A at full load inductive conditions; ratings are based on standard testing procedures. The unit includes one auxiliary contact (1NC) and uses screw terminals for wiring. It is designed for mounting on a DIN rail or panel, conforms to IP20 ingress protection standards when installed accordingly, and is manufactured as part of the XT series (Frame C).</p> <p>Key features</li> <li>- Action: Non-Reversing</li> <li>- Poles: 3</li> <li>- Coil Voltage: 480 V AC</li> <li>- Amperage rating: 18 A (full load inductive); 40 A (full load resistive)</li> <li>- Auxiliary Contacts: 1 NC</li> <li>- Embedded Surge Suppressor: Yes</li> <li>- Electrical Connection: Screw terminals</li> <li>- Mounting Style: DIN Rail, Panel</li> <li>- Frame/Series: Frame C, XT</li> <li>- Enclosure/NEMA: No Enclosure; IP20</li> <li>- Maximum Voltage Rating: 690 V AC</li> <li>- Frequency: 50/60 Hz</li> <li>- Mechanical Durability: 10,000,000 cycles</li> <li>- Electrical Durability: 2,000,000 cycles</li> <li>- Dimensions (approx.): Width 1.85 in, Height 3.9 in, Depth 3.43 in</li></ul></p>
