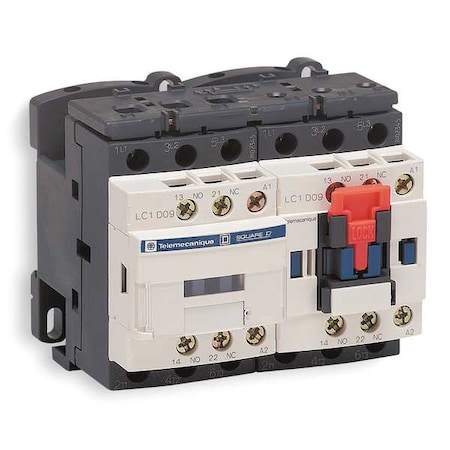

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw Clamp

Description

<p>The IEC Magnetic Contactor is a 3-pole, reversing control device from the TeSys Deca line that switches power circuits in motor control and resistive loads. It features a 24 V DC coil and 1NO/1NC auxiliary contacts, with screw clamp terminals and no enclosure. The unit is rated for operation within the specified voltage ranges. It conforms to IEC standards and is compatible with standard mounting configurations.</p> <p>- Action: Reversing</li> <li>- Poles: 3</li> <li>- Coil Voltage: 24 V DC</li> <li>- Auxiliary contacts: 2 (1NO/1NC)</li> <li>- Auxiliary contact form: 1NC/1NO</li> <li>- Electrical connection: Screw Clamp Terminals</li> <li>- Series: TeSys Deca</li> <li>- Frequency: 50/60 Hz</li> <li>- Rated voltage: 690 V AC; 300 V DC</li> <li>- Rated insulation volts: 600/690 V</li> <li>- IP rating: IP20</li> <li>- Embedded surge suppressor: Yes</li> <li>- Includes protective cover: Yes</li> <li>- Includes electrical interlock: Yes</li> <li>- Enclosure: No Enclosure</li> <li>- Net weight: 1.017 kg</li> <li>- Dimensions (W x D x H): 3.54 in x 3.74 in x 3.03 in</li> <li>- Maximum operating temperature: 140°F; Minimum operating temperature: -40°F</li> <li>- Electrical durability: 0.6 Mcycles (25 A, AC-1, <440 V); 2 Mcycles (9 A, AC-3, <440 V)</li> <li>- Mechanical durability: 30 Mcycles</li> <li>- Rated making capacity: 250 A @ 440V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling)</li></ul></p>
