Dayton

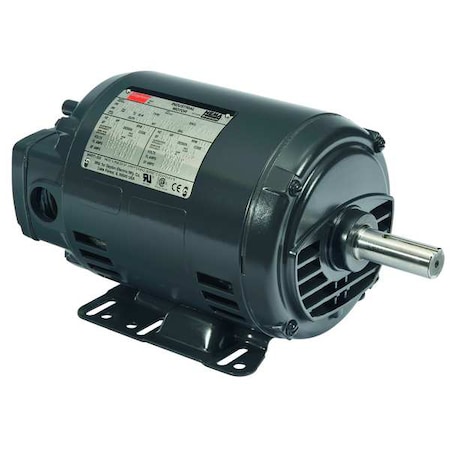

Three-Phase General Purpose Motor, 2 HP, 143-5T/56HZ Frame, 230/460V AC Voltage, 3515 Nameplate RPM
SKU: IM-0804325 · MPN: 2NKX9 · UPC: 190735228449
$766.79
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 3515, Frame 143-5T/56HZ, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 5.0/2.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Specifications
| Brand | Dayton |
|---|---|
| MPN | 2NKX9 |
| UPC | 190735228449 |
| Country of Origin | Mexico |
| Unit of Measure | EA |
| Shipping Weight | 44.5 lb |
