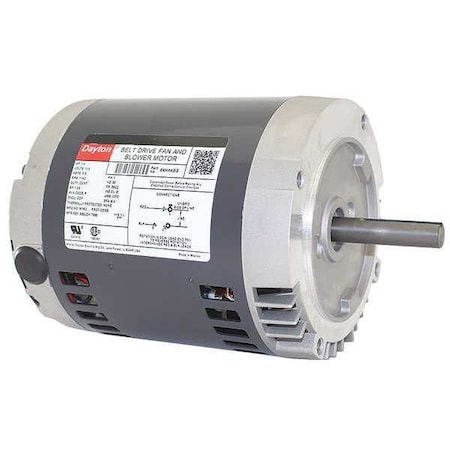

Belt Drive Mtr, SplitPh, ODP, 1/4HP, 1140rpm

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115V AC, 5.5 A Full Load Amps, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type C-Face, Motor Mounting Position All Angle, Motor Frame Material Steel, Shaft Dia. 5/8 in
