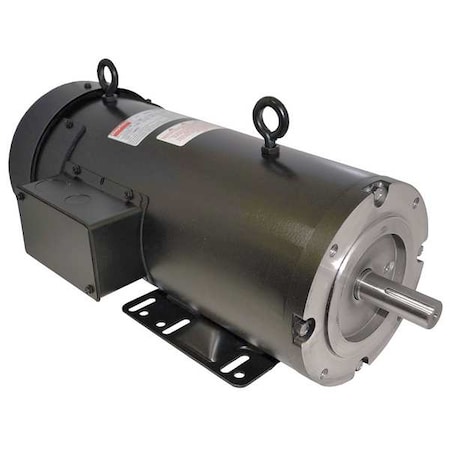

DC Motor,PM,TEFC,3 HP,1750 rpm,180VDC

Description

DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 3 HP, Nameplate RPM 1,750, Voltage 180V DC, 15.0 A Full Load Amps, 143/5TC Frame, Full Load Torque 108.2 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Shaft Dia. 7/8 in, Motor Bearings Ball, Shaft Length 2 1/2 in, Motor Shaft Design Keyed
