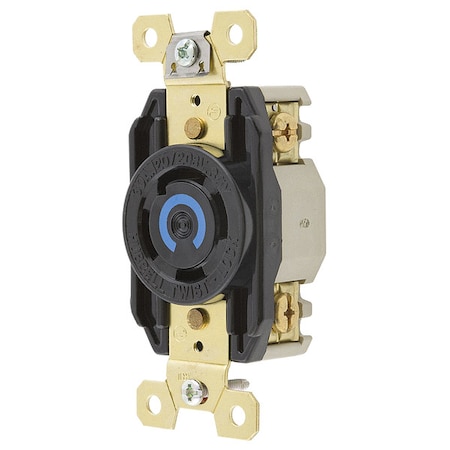

Locking Receptacle, L18-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals

Description

<p>The HUBBELL 30A Twist-Lock Receptacle L18-30R is a locking receptacle intended for use in industrial settings requiring locking receptacles. It features a twist-lock mechanism with a 4-pole, 4-wire configuration and is rated for three-phase 120/208V AC applications. The device has a flush mount design and includes mounting screws for installation in indoor, dry locations.</p><br /><br /><p>Key Features of the HUBBELL 30A Twist-Lock Receptacle L18-30R:<br><br /></p><ul><br /><li>Current and Voltage Rating: Rated for 30 amps at 120/208V AC, suitable for three-phase power distribution.</li><br /><li>NEMA Configuration: L18-30R with polarized design helps align proper connection orientation.</li><br /><li>Material Construction: Constructed with high-impact nylon face and thermoplastic housing; includes brass contacts.</li><br /><li>Wire Compatibility: Accepts wire sizes from #8 AWG to #16 AWG using screw terminals; supports both back and side wiring methods.</li><br /><li>Operating Temperature Range: Rated for operation between -40°F and 167°F (maximum continuous temperature of 75°C).</li><br /><li>Mounting Type: Flush mount with included hardware for installation using included hardware.</li><br /><li>NEMA Enclosure Rating/IP Rating: NEMA Type 1 enclosure, IP20 rated—intended for indoor use only.</li><br /><li>Standards Compliance: Meets UL 498, CSA C22.2 No.42, Federal Specification W-C-596 requirements.</li></ul><p>&nbsp;</p>
