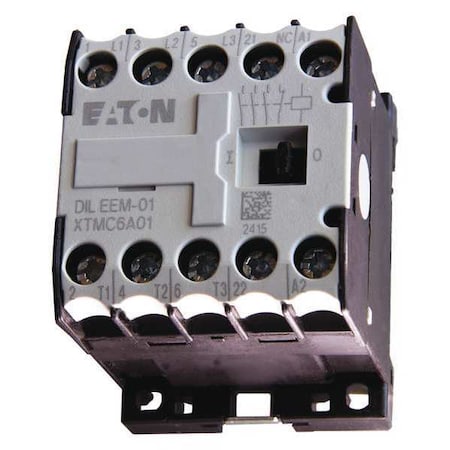

IEC Miniature Magnetic Contactor, 1NC, 24V DC, 3 P, Non-Reversing, Screw

Description

<p>The Eaton XT IEC Miniature Magnetic Contactor is a compact, 3-pole, non-reversing contactor with a 24 V DC coil. Includes auxiliary contacts and compatible terminal types as specified. It is suitable for DIN-rail or panel mounting within IP20 enclosures. Rated for operation within the specified voltage ranges with a maximum current of 6.60 A; includes an embedded surge suppressor component. Complies with applicable standards including UL, CSA, IEC 60947, EN 60947, CE Marking, RoHS.</p> <p>- Action: Non-Reversing</li> <li>- Aux. Contact Configuration: 1NC</li> <li>- Coil Voltage: 24V DC</li> <li>- Auxiliary Contacts: Yes (Includes 1 NC)</li> <li>- Amperage Rating: 6.60A</li> <li>- Maximum Voltage Rating: 690V AC/DC</li> <li>- Embedded Surge Suppressor: Yes</li> <li>- Enclosure NEMA Rating: No Enclosure</li> <li>- IP Rating: IP20</li> <li>- Mounting Style: DIN Rail, Panel</li> <li>- Terminals: Screw</li> <li>- Frame Size: A</li> <li>- Series: XT</li> <li>- Number of Poles: 3</li> <li>- Certifications/Standards: UL Listed; CSA Certified; IEC 60947; EN 60947; CE Marked; RoHS</li> <li>- Operating Temperature: -13°F to 122°F</li></ul></p>
