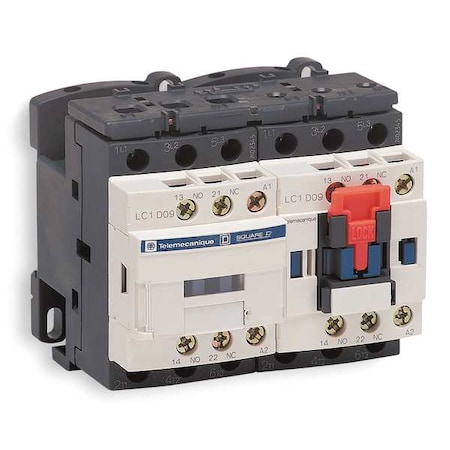

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw Clamp

Description

<p>The SQUARE D - IEC Magnetic Contactor is a reversing type, designed for motor control and resistive load applications. It operates within systems using a 24V DC power supply and features an auxiliary contact configuration of 1NO/1NC. The contactor has screw clamp terminals that provide an option for electrical connection, ensuring secure attachment. Its operational durability is rated for operation up to 1 Mcycles (32 A, AC-1) or up to 1.65 Mcycles (18 A, AC-3), both under less than 440 V conditions. This product comes preassembled with a reversing power busbar and includes built-in surge suppressor designed for potential voltage spikes.</p> <p>Key Features: <li>- Reversing action: Allows the direction of motor rotation to be changed.</li> <li>- Auxiliary Contact Form: Provides additional switching capacity.</li> <li>- Coil Voltage: Operates within systems using a 24V DC power supply.</li> <li>- Electrical Connection: Screw Clamp Terminals provide an option for electrical connection.</li> <li>- Durability: Rated for operation up to 1 Mcycles (32 A, AC-1) or up to 1.65 Mcycles (18 A, AC-3), both under less than 440 V conditions.</li> <li>-Surge Suppressor: Includes built-in surge suppressor designed for potential voltage spikes.</li> <li>-Fire Rating: Meets UL94 V1 fire safety standards which indicate self-extinguishing characteristics after ignition source removal </li> <li>-Mounting Style: Compatible with mounting on DIN Rail or Plate</li> <li>-Rated Breaking Capacity & Making Capacity : Designed to interrupt current flow upto300A @440V and establish current flow upto140A(AC Signalling Circuit),250A(DC Signalling Circuit).</li> <li>-Tightening Torque : Provides a torque range between 1.7 Nm(Control Circuit)and2.5Nm(Power Circuit).</li></p>
