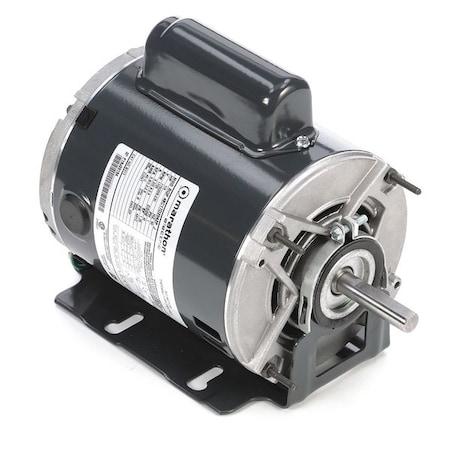

Fan and Blower Motor, Capacitor-Start, 1/4 HP, 115/208-230V AC, 1,725 Nameplate RPM, 48Y Frame

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 5.2/2.8-2.6 A Full Load Amps, 48YZ Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal
