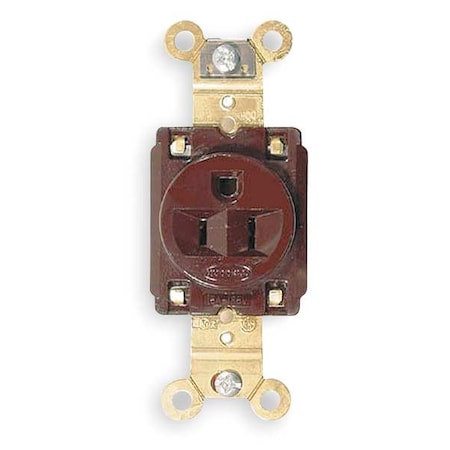

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL HBL5262 is a single flush mount receptacle rated for 15A and 125V AC, rated as specification grade. It features a traditional face shape with finder groove style and is intended for installation in industrial environments where durability and reliable electrical connections are required. The device accommodates both back and side wiring methods, supporting #14 to #10 AWG copper conductors.</p><br /><br /><p>Key Features of the HUBBELL HBL5262 Single Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 15A, 125V AC operation</li><br /><li>NEMA Configuration: 5-15R, single outlet type</li><br /><li>Mounting Type: Flush mount design with included mounting hardware</li><br /><li>Material Construction: Nylon face with reinforced PET base; housing constructed from materials rated for impact resistance</li><br /><li>Wiring Method: Back or side wired; screw terminals support #14–#10 AWG copper wire</li><br /><li>Grounding: Grounded device with stainless steel auto ground clip and brass ground screw</li><br /><li>Contact Material: Nickel-plated brass contacts</li><br /><li>Operating Temperature Range: -40°C to +75°C (without impact)</li><br /><li>Certification &amp; Standards: UL Listed (UL498), CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6 compliant</li><br /><li>Dielectric Strength &amp; Flammability Rating: Withstands minimum 2000V dielectric voltage; top rated UL94 V-2 flammability, base rated UL94 V-0 flammability</li></ul><p>&nbsp;</p>
