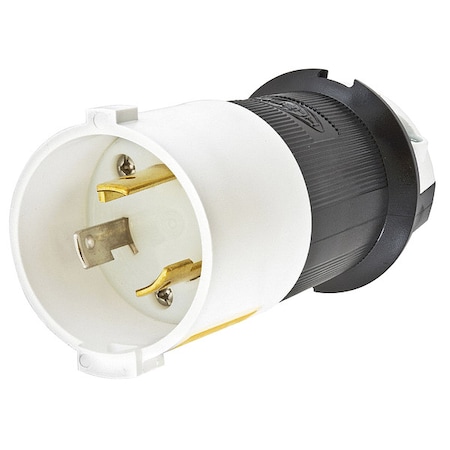

Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

Description

<p>The HUBBELL 30A Locking Plug L5-30P is an industrial-grade locking plug intended for use in electrical connections in indoor, dry locations. It features a ribbed nylon housing for enhanced grip and resistance to impact and chemicals, along with a cord grip design intended to reduce strain on wire terminations. The integral dust shield provides additional protection by keeping contaminants out of the wiring chamber.</p><br /><br /><p>Key Features of the HUBBELL 30A Locking Plug L5-30P:<br><br /></p><ul><br /><li>NEMA Configuration: L5-30P, rated for 125V AC single-phase applications at up to 30 amps</li><br /><li>Wire Accommodation: Accepts wire sizes from 16 AWG to 8 AWG using screw terminals</li><br /><li>Cord Size Compatibility: Suitable for cable diameters between 0.36 in and 0.93 in</li><br /><li>Material Construction: Nylon housing with brass blades; constructed with materials rated for chemical and impact resistance</li><br /><li>Temperature Range: Rated for operation within a temperature range of -40°C to +75°C (when not subject to impact)</li><br /><li>Flammability Rating: Meets UL 94 HB or better standards</li><br /><li>Shrouded Design &amp; Polarization: Features a polarized blade arrangement</li><br /><li>Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL 498</li></ul><p>&nbsp;</p>
