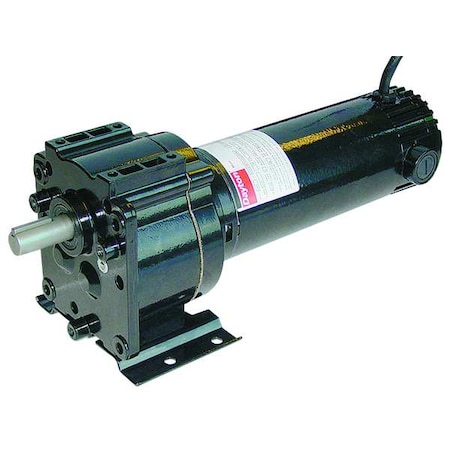

DC Gearmotor, 77 in-lb Max. Torque, 94 RPM Nameplate RPM, 90V DC Voltage

Description

DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 94 RPM, Maximum Torque 77 in-lb, Overhung Load Capacity 150 lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 19:1, Input Horsepower 1/8 hp, Output Shaft Diameter 5/8 in, Bearing Type Ball on Motor, Needle Roller and Thrust Balls on Case
