Dayton

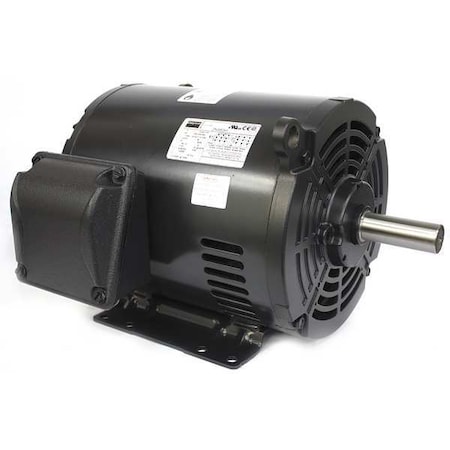

Three-Phase General Purpose Motor, 3 HP, 213/5 Frame, 230/460V AC Voltage, 1740 Nameplate RPM
SKU: IM-0494015 · MPN: 2N983 · UPC: 190735228319
$1,167.59
+ $130.00 freight surcharge (per unit)
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 1740, Frame 213/5, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.9/3.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Specifications
| Brand | Dayton |
|---|---|
| MPN | 2N983 |
| UPC | 190735228319 |
| Country of Origin | Mexico |
| Unit of Measure | EA |
| Shipping Weight | 115.7 lb |
