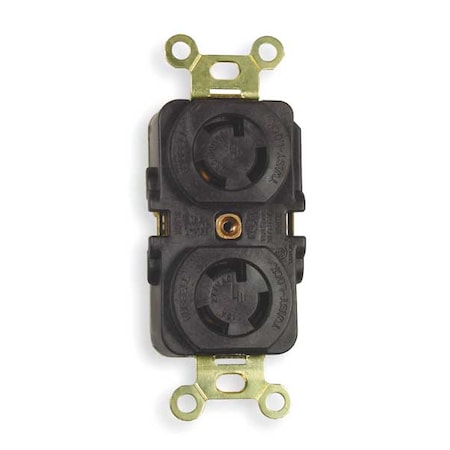

Locking Receptacle, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

Description

<p>The HUBBELL 15A Locking Receptacle L7-15R is an industrial-grade electrical receptacle rated for use in indoor dry locations. It includes a twist-lock mechanism to prevent accidental disconnection and accommodates single-phase, 277V AC circuits with two poles and three wires. The device is constructed from reinforced thermoplastic (Valox) with all-brass contacts for reliable conductivity and includes a steel mounting strap for flush installation.</p><br /><br /><p>Key Features of the HUBBELL 15A Locking Receptacle L7-15R:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 15 A at 277V AC, suitable for heavy-duty industrial applications</li><br /><li>NEMA Configuration: L7-15R, polarized design with twist-lock functionality</li><br /><li>Construction: Reinforced thermoplastic body with single-piece brass contacts; impact resistant</li><br /><li>Mounting Type: Flush mount with included screw-mount hardware and steel mounting strap</li><br /><li>Wire Accommodation: Accepts #18 AWG to #10 AWG solid or stranded copper wire via screw terminals</li><br /><li>Operating Temperature Range: -40°C to +75°C (without impact)</li><br /><li>NEMA Enclosure/IP Rating: NEMA Type 1 enclosure, IP20 rated; intended for indoor use only unless further protected</li><br /><li>Certifications: Listed to UL 498, CSA C22.2 No.42 certified, Federal Specification W-C-596 compliant</li></ul><p>&nbsp;</p>
