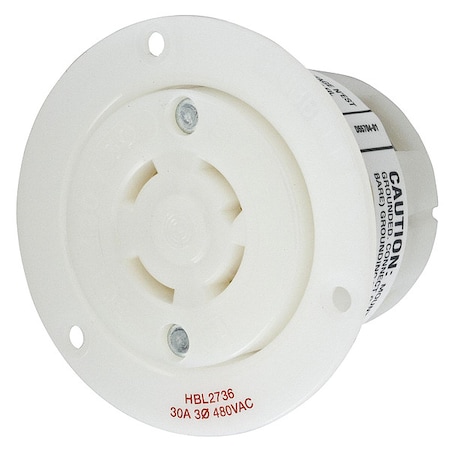

Flanged Locking Receptacle, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount, White

Description

<p>The HUBBELL 30A Flanged Twist-Lock Receptacle is a locking receptacle rated for use in indoor, dry locations. This three-pole, four-wire device supports up to 30 amps at 480V AC and features a twist-lock mechanism for connection with compatible plugs. The receptacle is constructed from impact-resistant nylon and includes a round flange for flush mounting.</p><br /><br /><p>Key Features of the HUBBELL 30A Flanged Twist-Lock Receptacle:<br><br /></p><ul><br /><li>NEMA Configuration: L16-30R, rated for 3-phase, 4-wire applications at 480V AC.</li><br /><li>Material: Nylon housing and natural white nylon flange; suitable for use in industrial settings.</li><br /><li>Mounting Type: Flush mount design with included mounting screws; round flanged shape.</li><br /><li>Terminals: Backwired screw terminals accept #8–#16 AWG solid or stranded copper wire; accepts slotted, Phillips, and Robertson drivers.</li><br /><li>Performance Ratings: Rated dielectric voltage: minimum 2,000V; maximum continuous operating temperature: 75°C (167°F); minimum operating temperature: -40°C (-40°F) without impact.</li><br /><li>Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596; listed to UL 498.</li><br /><li>Ingress Protection: Rated IP20 for indoor use in dry environments unless additional protection is provided.</li><br /></ul><p>&nbsp;</p>
