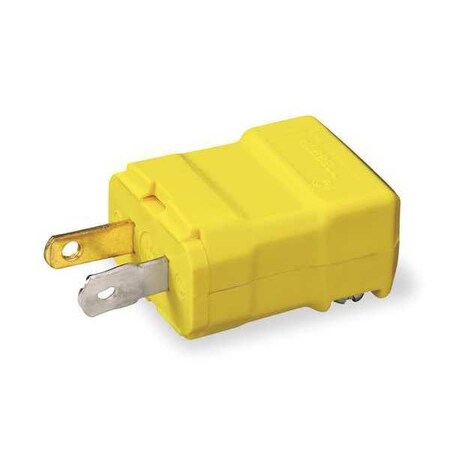

Straight Blade Plug, 1-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Non-Grounded

Description

<p>The HUBBELL 2 Wire Straight Blade Plug is a non-grounding, polarized plug rated for operation at 125V AC, up to 15 amps. It features a hinged one-piece nylon body with two captive multiple drive screws for secure installation. The plug accommodates cord sizes from 0.218 in to 0.385 in and is intended for use in commercial and industrial settings where a straight blade connection is specified.</p><br /><br /><p>Key Features of the HUBBELL 2 Wire Straight Blade Plug:<br><br /></p><ul><br /><li>Amperage/Voltage Rating: Rated for 15 A at 125 V AC</li><br /><li>NEMA Configuration: 1-15P, non-grounding, single phase</li><br /><li>Body Design: Hinged one-piece nylon housing with screw terminals</li><br /><li>Cord Accommodation: Accepts #18 AWG to #14 AWG stranded copper wire; cord clamp made from Noryl (Polyphenylene Oxide)</li><br /><li>Polarization: Polarized blades provide specific electrical orientation</li><br /><li>Corrosion Resistance: Constructed from materials identified as corrosion resistant</li><br /><li>Dielectric Strength &amp; Flammability: Withstands minimum of 2,000V; UL94 HB flammability rating</li><br /><li>Operating Temperature Range: -40°F to +167°F (maximum continuous temperature of 75°C)</li><br /><li>Standards Compliance: CSA Certified C22.2 No.42 File 280C, NEMA WD-6 Compliant, UL Listed to UL498 File E1706</li></ul><p>&nbsp;</p>
