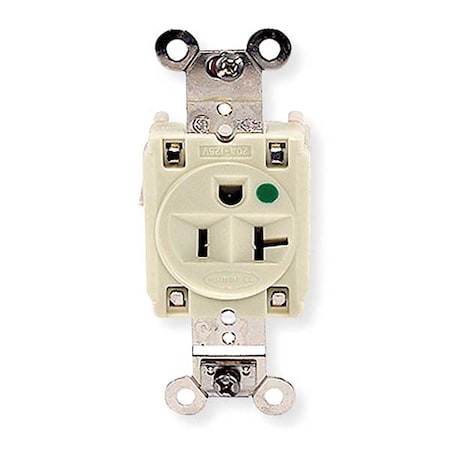

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL 5-20R Hospital Grade Single Receptacle is a flush mount electrical outlet rated for 20A and 125V AC. Rated for extra heavy duty applications, this single straight blade receptacle features a grounded configuration with back and side wired screw terminals. It meets hospital grade standards as specified; suitable for use in indoor environments as rated.</p><br /><br /><p>Key Features of the HUBBELL 5-20R Hospital Grade Single Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 20A, 125V AC</li><br /><li>NEMA Configuration: 5-20R, single outlet</li><br /><li>Mounting Type: Flush mount with included mounting hardware</li><br /><li>Wiring Method: Back and side wired screw terminals; accommodates #12–#10 AWG stranded or solid copper wire</li><br /><li>Contact Material: Brass contacts with nickel-plated bypass contact design</li><br /><li>Grounding System: Four-point grounding system designed to support ground continuity</li><br /><li>Material Construction: Impact modified PBT/reinforced PET body with nylon housing; impact-resistant deep face design</li><br /><li>Dielectric Strength &amp; Flammability Ratings: Withstands minimum 2,000V dielectric voltage; UL94 V-0/V-2/5VA flammability ratings (top/base)</li><br /><li>Circuit Interrupting Capability: Certified for current interrupting at full rated current</li></ul><p>&nbsp;</p>
