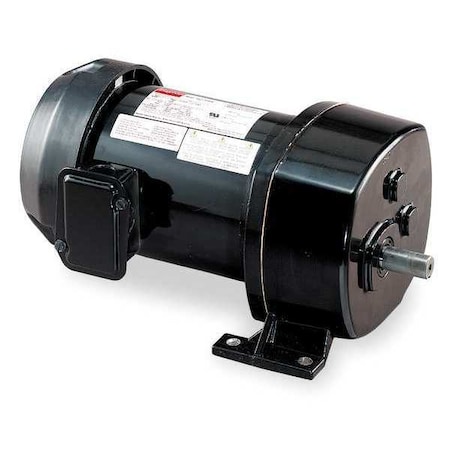

AC Gearmotor, 480 in-lb Max. Torque, 61 RPM Nameplate RPM, 115V AC Voltage, 1 Phase

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Split-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 61 RPM, Maximum Torque 480 in-lb, Overhung Load Capacity 325 lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 29:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class B, Motor Duty Class Continuous, AGMA Gear Class Class 9
