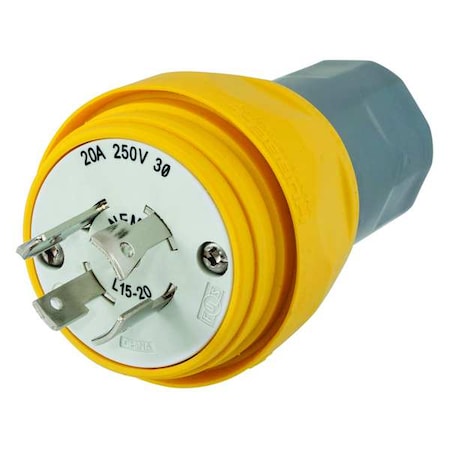

Watertight Locking Plug, L15-20P, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Yellow

Description

<p>The HUBBELL 20A Watertight Locking Plug (L15-20P YL) is a three-phase, four-wire plug intended for use in industrial electrical connections where watertight and dust-resistant characteristics are specified. Rated for 20 amps at 250V AC, this plug features a smooth thermoplastic elastomer body to facilitate cleaning. The strain relief nut is positioned on the body as part of its sealing mechanism, while stainless steel hardware includes stainless steel hardware provides additional durability.</p><br /><br /><p>Key Features of the HUBBELL 20A Watertight Locking Plug:<br><br /></p><ul><br /><li>NEMA Configuration: L15-20P; rated for three-phase, four-wire applications at 250V AC</li><br /><li>Body Material: Thermoplastic elastomer with Valox components for chemical and impact resistance</li><br /><li>Contact/Blade Material: Nickel-plated brass contacts and blades enhance conductivity and corrosion resistance</li><br /><li>Cord Accommodation: Accepts cable diameters from 0.375 in to 0.875 in; suitable for various wire sizes (min. cord: 16/3 SJ, max. cord: 10/5 S)</li><br /><li>Ingress Protection: IP69K rated; moisture, dust, and weather resistant per UL Listed Types 4, 4X, 12, 6, and 6P</li><br /><li>Operating Temperature Range: -40°C to +60°C continuous use</li><br /><li>Wire Connection Type: Screw terminals with standard wiring style</li><br /><li>Standards Compliance: Meets ANSI standards as well as NEMA WD-1 and WD-6 requirements</li></ul><p>&nbsp;</p>
